XIAMEN GOHE MEDICAL TECHNOLOGY CO., LTD
Home Surgical Instruments

Disposable Sterile Laparoscopic Surgery Trocar

Disposable Sterile Laparoscopic Surgery Trocar

A laparoscopic surgery aid that creates a pathway to internal organs or tissues during operations.



  • Item No :

    GOHE014
  • MOQ :

    10 Pieces
  • Classification :

    Class II
  • Color :

    Black
  • Origin :

    Xiamen, China
  • Payment :

    T/T 50% and balance before shipment
  • Lead Time :

    Depends on the order circumstances

Disposable Sterile Laparoscopic Surgery Trocar

The disposable trocar is primarily used in minimally invasive laparoscopic surgery. It creates an access channel through the abdominal wall for surgical instruments like staplers and endoscopes. Its single-use nature prevents cross-infection, enhances surgical precision and safety, and improves the surgical experience for patients.

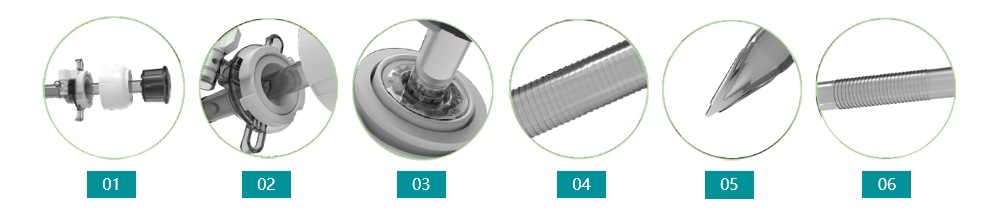

Disposable Surgical Trocar Cannula Features:

Disposable Invisible Trocar (Covidien-Style)

1. Three-piece detachable design for easier specimen retrieval;

2. Rotating latch mechanism, simply rotate to unlock, more secure;

3. Double-layered sealing cap and valve design effectively prevent gas leakage during instrument insertion or removal;

4. Barbed thread design provides greater abdominal wall fixation strength, greatly preventing sheath detachment during instrument removal;

5. Bladed trocar tip with a six-sided flat blade, does not cut abdominal wall tissue;

6. Transparent sheath design makes it easy to locate sutures inside the sheath.



Single-Use Trocar For Endoscopic Surgery Specifications:

Specification Inner Diameter of Trocar Cannula Outer Diameter of Trocar Cone Overall Length Length of Trocar Cannula
 Basic Dimension Tolerance Basic Dimension Tolerance Basic Dimension Tolerance Basic Dimension Tolerance
03 3.7mm ±0.15mm 3.5mm ±0.1mm 180mm ±2.0mm 110mm ±2.0mm
05 5.9mm ±0.3mm 5.7mm 190mm 110mm
10 10.5mm 10.3mm ±0.15mm 200mm 110mm
12 12.9mm 12.7mm 200mm 110mm

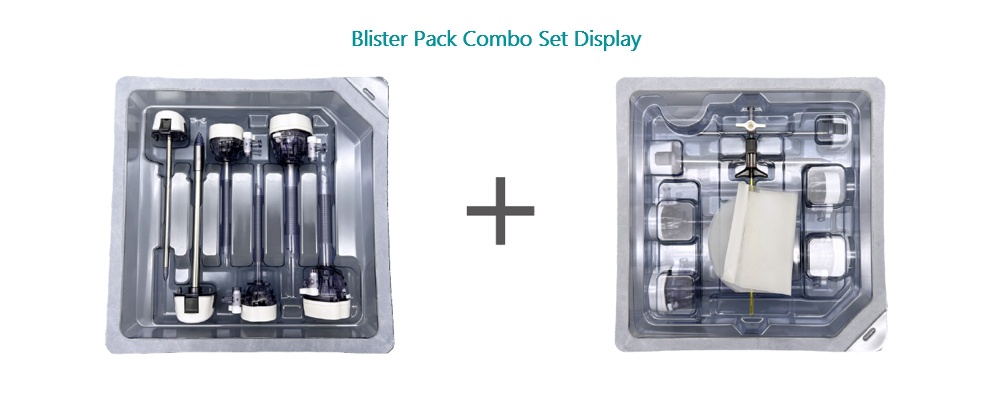

Single-Use Sterile Trocar Set:

Blister Pack Combo Set
Type Specification Content
V-1 5-5-10

- 2 pieces of 5mm sheaths, 1 piece of 10mm sheath

- 1 piece of 5mm and 1 piece of 10mm trocar needles

- 1 piece of 120mm pneumoperitoneal needle, 1 specimen retrieval bag (optional)

V-2 5-5-12

- 2 pieces of 5mm sheaths, 1 piece of 12mm sheath

- 1 piece of 5mm and 1 piece of 12mm trocar needles

- 1 piece of 120mm pneumoperitoneal needle, 1 specimen retrieval bag (optional)
V-3 5-10-12

- 1 piece of 5mm sheath, 1 piece of 10mm sheath, 1 piece of 12mm sheath

- 1 piece of 5mm, 1 piece of 10mm, and 1 piece of 12mm trocar needles

- 1 piece of 120mm pneumoperitoneal needle, 1 specimen retrieval bag (optional)
V-4 5-5-10-10

- 2 pieces of 5mm sheaths, 2 pieces of 10mm sheaths

- 1 piece of 5mm and 1 piece of 10mm trocar needles

- 1 piece of 120mm pneumoperitoneal needle, 1 specimen retrieval bag (optional)
V-5 5-5-12-12

- 2 pieces of 5mm sheaths, 2 pieces of 12mm sheaths

- 1 piece of 5mm and 1 piece of 12mm trocar needles

- 1 piece of 120mm pneumoperitoneal needle, 1 specimen retrieval bag (optional)
V-6 5-5-5-10-12

- 3 pieces of 5mm sheaths, 1 piece of 10mm sheath, 1 piece of 12mm sheath

- 1 piece of 5mm, 1 piece of 10mm, and 1 piece of 12mm trocar needles

- 1 piece of 120mm/150mm pneumoperitoneal needle, 1 specimen retrieval bag (optional)
V-7 5-5-10-10-12

- 2 pieces of 5mm sheaths, 2 pieces of 10mm sheaths, 1 piece of 12mm sheath

- 1 piece of 5mm, 1 piece of 10mm, and 1 piece of 12mm trocar needles

- 1 piece of 120mm/150mm pneumoperitoneal needle, 1 specimen retrieval bag (optional)

Note: The pneumoperitoneal needle and specimen retrieval bag are optional and can be excluded from the configuration. The size of the specimen retrieval bag can be customized as needed.

Disposable Trocar Set

Specimen Retrieval Bag Dimensions Chart
No. Type Bag Length/mm Bag Depth/mm Capacity/ml Note
1 U-shaped Bag 60 115 /
2 U-shaped Bag 80 120 /
3 U-shaped Bag 80 140 /
4 U-shaped Bag 95 130 /
5 U-shaped Bag 100 150 330

Routine Dimensions

(Compatible with Small Sampler)

6 U-shaped Bag 100 160 /
7 U-shaped Bag 100 200 350 Routine Dimensions
8 U-shaped Bag 120 165 400

Routine Dimensions

(Compatible with Medium Sampler)

9 U-shaped Bag 120 180 /
10 U-shaped Bag 125 135 /
11 U-shaped Bag 135 155 420
12 U-shaped Bag 150 210 800

Routine Dimensions

(Compatible with Large Sampler)

13 U-shaped Bag 160 165 600
14 U-shaped Bag 180 155 /
15 V-shaped Bag 60 120 /
16 V-shaped Bag 80 140 /
17 V-shaped Bag 95 130 70

Routine Dimensions

(Compatible with Small Sampler)

18 V-shaped Bag 100 160 /
19 V-shaped Bag 105 120 /
20 V-shaped Bag 120 180 /
21 V-shaped Bag 130 150 150

Routine Dimensions

(Compatible with Medium Sampler)

22 V-shaped Bag 140 160 /
23 V-shaped Bag 150 175 300

Routine Dimensions

(Compatible with Large Sampler)

Note: The measurement tolerance is 5mm.
