Minimally Invasive Meniscus Suture System for Knee Repair

Minimally Invasive Meniscus Suture System for Knee Repair

The meniscus repair device is a medical device for repairing meniscus injuries in the knee joint. It is used to treat tears and ruptures, restoring knee function through minimally invasive techniques.

Meniscus Surgical Instrument Features:

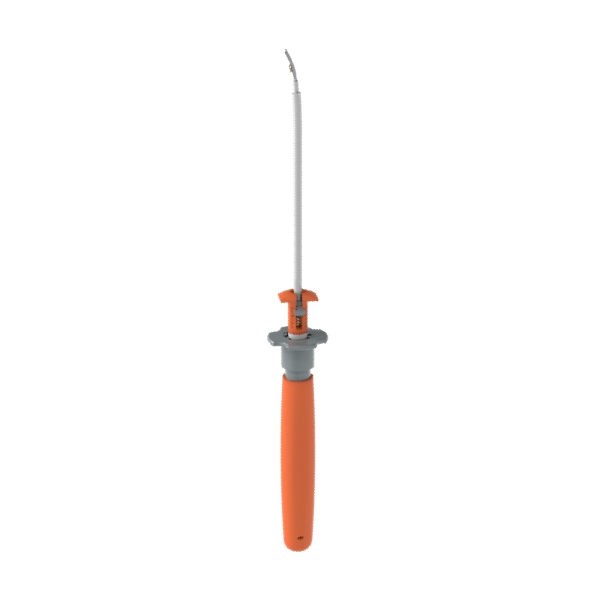

- Simple and convenient operation: Equipped with an ergonomic handheld grip, allowing for easier one-handed operation;

- Adjustable depth limiter: The depth limiter can be adjusted according to actual needs, providing better protection for blood vessels and nerves;

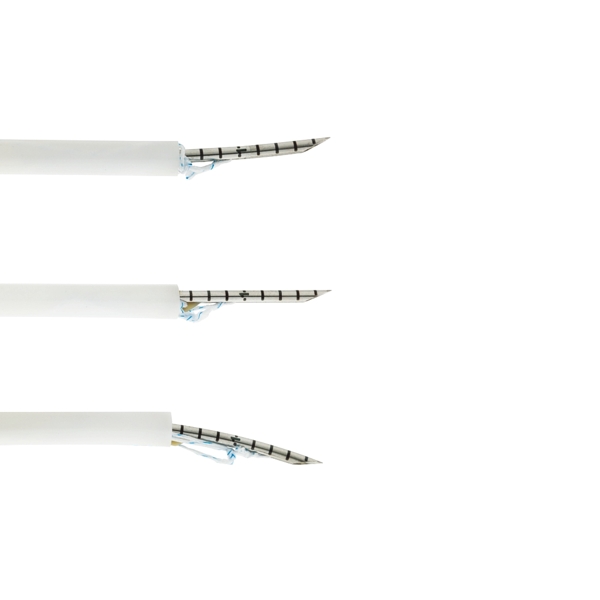

- Multiple angle options: Available in 0° straight, 15° upward-curved, and -5° downward-curved designs, fully meeting the repair needs of different meniscus regions;

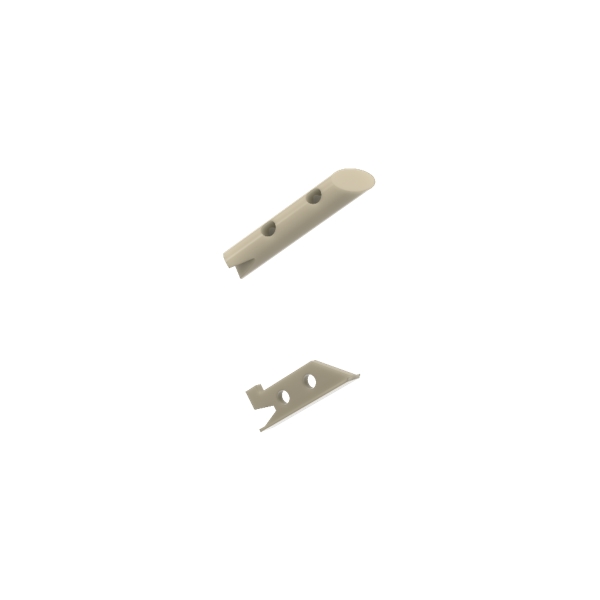

- Minimally invasive and reliable suturing: Features micro-implants and ultra-strong sutures, leaving no hard objects on the meniscus surface, achieving minimal trauma and maximum suture strength.

Meniscus Suture Surgical Instrument Specifications:

Arthroscopic Meniscus Suture Tool Instructions:

1. Position the tip of the puncture tube needle against the guide plate, and insert the puncture tube, preset to the desired depth, through the meniscus tissue;

2. Keep the puncture tube in place, deploy and release fixation rod T1, then slowly withdraw the puncture tube;

3. Reset the depth, reinsert the puncture tube into the meniscus tissue, and maintain its position;

4. Deploy and release fixation rod T2, then slowly withdraw the puncture tube from the meniscus tissue;

5. Pull the tail end of the suture to tighten the sliding knot, and use a knot pusher if necessary for further tightening;

6. Complete the suturing and fixation of the meniscus tear, and trim any excess suture. Depending on the meniscus tear condition, additional meniscus suture systems may be used.
